Aluminum Bluefin Condenser Micro Channel Evaporator Coils

Name: Aluminum Bluefin Condenser Micro Channel Evaporator Coils
Brand: sail
Price: 1 USD

Quality Aluminum Bluefin Condenser Micro Channel Evaporator Coils wholesale

Certification : RoHS, ISO, CE

MOQ : 100pcs

Price : Negotiation

Packaging Details : carton box

Delivery Time : 30 days

Payment Terms : D/P, L/C, D/A, D/P, T/T

Supply Ability : 10000 Pieces/Year

Brand Name : sail

Place of Origin : China

Form : Fixed Tube-Sheet

Application Field : Petrochemical Industry

Condition : New

Warranty : One Year

Process : Plate

Certificate : ISO

Dimension : Depends

Transport Package : by Standard Export Carton or Wooden Board

Specification : Customized

Trademark : Customized

Origin : China

HS Code : 8419500090

Condensation Forms : Water-Cooled

Refrigerant : CF2Cl2

Type : Steam Condenser

Material : Aluminium

Structural Form : Horizontal

Heat Transfer Mode : Regenerative

Samples : US$ 80/Piece 1 Piece(Min.Order) | Request Sample

Customization : Available | Customized Request

Contact Now

Product Description

1. Material: copper, aluminum, galvanized plate.

2. Copper pipe: diameterΦ7, Φ7.94, Φ9.52, inner grooved or smooth tube.

3. Aluminum foil: hydrophilic or bare

4. Fin type: louver fin, flat fin, corrugated fin

5. Pitch of fins: Ø7 1.1~1.8mm Ø7.94 1.4~2.0 mm Ø9.52 1.4~2.3 mm

6. Pitch of holes and pitch of rows: 20.5x12.7mm, 22x19.05mm, 21x12.7mm, 25.4x22mm equilateral triangle arrangement.

Specifications of evaporator
NO	Tube Diameter(mm)	Distance of hole/row(mm)	Fin Style	Fin Space(mm)
1	Φ7	21*12.7	Louvered fin,Plain fin,Sine wave fin	1.4~2.0
2	Φ7	21*18.9	Sine wave fin,Corrugated fin	1.3~1.9
3	Φ7	25*21.65	Louvered fin	1.5~3.8
4	Φ9.52	25.4*22	Louvered fin,Sine wave fin	1.6~6.35
5	Φ9.52	25.4*22	Louverd fin,Plain fin,Sine wave fin	1.6~3.2
6	Φ9.52	25*19	Louverd fin,Plain fin,Sine wave fin	1.4~3.2
7	Φ9.52	25*21.65	Louvered fin,V ripple fin	2.0~3.8
8	Φ9.52	25*25	Plain fin	1.6~3.2
9	Φ9.52	25*21.65	Plain fin	2.0~6.0
10	Φ9.52	25.4*22	Louvered fin,Plain fin,Sine wave fin	1.6~6.35
11	Φ9.52	31.75*27.5	Louvered fin,Plain fin,Sine wave fin	1.6~6.35
12	Φ12.7	31.75*27.5	Plain fin,Sine wave fin,V ripple fin	1.8~6.0
13	Φ12.7	31.75*27.5	Louvered fin,Plain fin,Sine wave fin,V ripple fin	1.7~2.2
14	Φ12.7	31.75*27.5	corrugated fin	1.6~2.9
15	Φ15.88	38.1*33	Plain fin,Sine wave fin,V ripple fin	2~4
1.5~4.1	1.5~4.2	1.5~4.3	1.5~4.4	1.5~4.5

We can serve for more types of evaporator according to every customers' drawing and requirement

	Series 1	Series 2	Series 3	Series 4
Tube Diameter	Φ 9.52	Φ9.52	Φ7	Φ 7.94
Hole Space(mm)	25	25.4	20.5	22
Row Space(mm)	21.65	22	12.7	19.05
Tube Material	Copper, Aluminum	Copper, Aluminum	Copper, Aluminum	Copper, Aluminum
Type of Tube	Smooth Tube, Inner Grooved Tube	Smooth Tube, Inner Grooved Tube	Smooth Tube, Inner Grooved Tube	Smooth Tube, Inner Grooved Tube
Fin Surface	Louver Fin, Corrugated Fin	Flat Fin, Louver Fin, Corrugated Fin	Flat Fin, Louver Fin	Louver Fin
Fin Type	Hydrophilic Foil, Bare Foil, Copper Foil	Hydrophilic Foil, Bare Foil,	Hydrophilic Foil, Bare Foil, Golden Foil	Hydrophilic Foil, Bare Foil, Golden Foil
Fin Thickness(mm)	0.095~0.2	0.095~0.2	0.095~0.2	0.095~0.2
Fin Space(mm)	1.4~2.3 mm	1.4~2.3 mm	1.1~1.8mm	1.4~2.0 mm

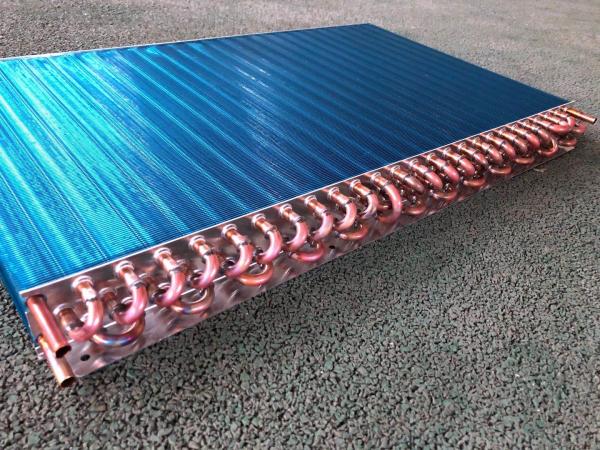

Aluminum Bluefin Condenser Micro Channel Evaporator Coils

Aluminum Bluefin Condenser Micro Channel Evaporator Coils

Steam coils are a common heat source in an air handler to provide heating for many commercial and industrial buildings. The supplied air from the fans is warmed by moving across aluminum, stainless or copper fins. The fins are warm from the exchanged heat of the steam going through the tubes. You may also see steam coils in rooftop units or ductwork.

Most steam coils we see use low pressure steam around 5 to 15 PSI. We do sell steam coils for applications that use much higher steam pressure that are typically for process heating in a factory. In this case it’s common to see stainless steel tubes used which can withstand the high pressures and temperatures.
