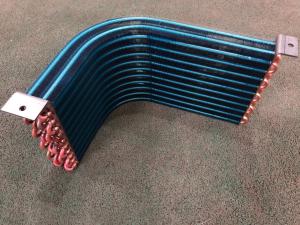

Freezer Refrigeration Evaporator Coils Bluefin Condenser

Name: Freezer Refrigeration Evaporator Coils Bluefin Condenser
Brand: sail
Price: 1 USD

Quality Freezer Refrigeration Evaporator Coils Bluefin Condenser wholesale

Certification : RoHS, ISO, CE

MOQ : 100pcs

Price : Negotiation

Packaging Details : carton box

Delivery Time : 30 days

Payment Terms : D/P, L/C, D/A, D/P, T/T

Supply Ability : 10000 Pieces/Year

Brand Name : sail

Place of Origin : China

Form : Fixed Tube-Sheet

Application Field : Petrochemical Industry

Condition : New

Warranty : One Year

Process : Plate

Certificate : ISO

Dimension : Depends

Transport Package : by Standard Export Carton or Wooden Board

Specification : Customized

Trademark : Customized

Origin : China

HS Code : 8419500090

Condensation Forms : Water-Cooled

Refrigerant : CF2Cl2

Type : Steam Condenser

Material : Aluminium

Structural Form : Horizontal

Heat Transfer Mode : Regenerative

Samples : US$ 80/Piece 1 Piece(Min.Order) | Request Sample

Customization : Available | Customized Request

Contact Now

Product Description

1. Material: copper, aluminum, galvanized plate.

2. Copper pipe: diameterΦ7, Φ7.94, Φ9.52, inner grooved or smooth tube.

3. Aluminum foil: hydrophilic or bare

4. Fin type: louver fin, flat fin, corrugated fin

5. Pitch of fins: Ø7 1.1~1.8mm Ø7.94 1.4~2.0 mm Ø9.52 1.4~2.3 mm

6. Pitch of holes and pitch of rows: 20.5x12.7mm, 22x19.05mm, 21x12.7mm, 25.4x22mm equilateral triangle arrangement.

Specifications of evaporator
NO	Tube Diameter(mm)	Distance of hole/row(mm)	Fin Style	Fin Space(mm)
1	Φ7	21*12.7	Louvered fin,Plain fin,Sine wave fin	1.4~2.0
2	Φ7	21*18.9	Sine wave fin,Corrugated fin	1.3~1.9
3	Φ7	25*21.65	Louvered fin	1.5~3.8
4	Φ9.52	25.4*22	Louvered fin,Sine wave fin	1.6~6.35
5	Φ9.52	25.4*22	Louverd fin,Plain fin,Sine wave fin	1.6~3.2
6	Φ9.52	25*19	Louverd fin,Plain fin,Sine wave fin	1.4~3.2
7	Φ9.52	25*21.65	Louvered fin,V ripple fin	2.0~3.8
8	Φ9.52	25*25	Plain fin	1.6~3.2
9	Φ9.52	25*21.65	Plain fin	2.0~6.0
10	Φ9.52	25.4*22	Louvered fin,Plain fin,Sine wave fin	1.6~6.35
11	Φ9.52	31.75*27.5	Louvered fin,Plain fin,Sine wave fin	1.6~6.35
12	Φ12.7	31.75*27.5	Plain fin,Sine wave fin,V ripple fin	1.8~6.0
13	Φ12.7	31.75*27.5	Louvered fin,Plain fin,Sine wave fin,V ripple fin	1.7~2.2
14	Φ12.7	31.75*27.5	corrugated fin	1.6~2.9
15	Φ15.88	38.1*33	Plain fin,Sine wave fin,V ripple fin	2~4
1.5~4.1	1.5~4.2	1.5~4.3	1.5~4.4	1.5~4.5

We can serve for more types of evaporator according to every customers' drawing and requirement

	Series 1	Series 2	Series 3	Series 4
Tube Diameter	Φ 9.52	Φ9.52	Φ7	Φ 7.94
Hole Space(mm)	25	25.4	20.5	22
Row Space(mm)	21.65	22	12.7	19.05
Tube Material	Copper, Aluminum	Copper, Aluminum	Copper, Aluminum	Copper, Aluminum
Type of Tube	Smooth Tube, Inner Grooved Tube	Smooth Tube, Inner Grooved Tube	Smooth Tube, Inner Grooved Tube	Smooth Tube, Inner Grooved Tube
Fin Surface	Louver Fin, Corrugated Fin	Flat Fin, Louver Fin, Corrugated Fin	Flat Fin, Louver Fin	Louver Fin
Fin Type	Hydrophilic Foil, Bare Foil, Copper Foil	Hydrophilic Foil, Bare Foil,	Hydrophilic Foil, Bare Foil, Golden Foil	Hydrophilic Foil, Bare Foil, Golden Foil
Fin Thickness(mm)	0.095~0.2	0.095~0.2	0.095~0.2	0.095~0.2
Fin Space(mm)	1.4~2.3 mm	1.4~2.3 mm	1.1~1.8mm	1.4~2.0 mm

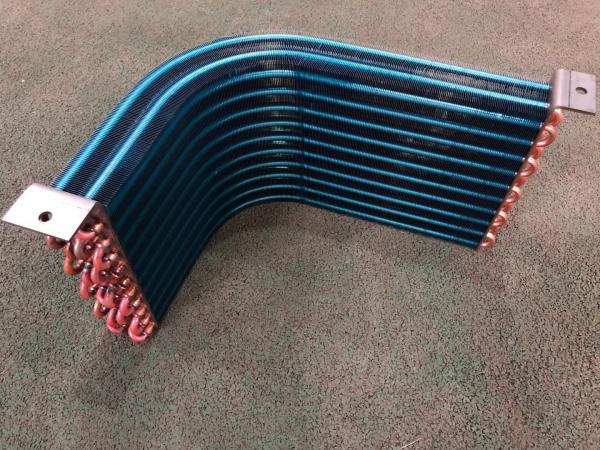

Freezer Refrigeration Evaporator Coils Bluefin Condenser

Freezer Refrigeration Evaporator Coils Bluefin Condenser

Chilled water coils also known as hydronic cooling coils are typically used to cool or remove moisture from air streams. The air to be cooled moves through the fins, and either water or an ethylene or propylene glycol solution move through the tubes. This is a type of heat exchanger mostly used in commercial and industrial air handler units.

A simple form of water coils have been around for centuries. The first “modern” heat exchanger using water was invented by William Blakely in 1796. However Water Tube boilers date back almost 2,000 years. More commonly used cooling in the world today are refrigerant systems.
